Highly Accurate Universal Tensile Testing Machine Fully Automatic

Name: Highly Accurate Universal Tensile Testing Machine Fully Automatic
Brand: GSKA
Price: 1 USD

Quality Highly Accurate Universal Tensile Testing Machine Fully Automatic for sale

Brand Name : GSKA

Model Number : GSA69

Certification : CE

Place of Origin : Donggaun,china

MOQ : 1set

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 190 Set / Sets per Month

Delivery Time : 15-20working days after received deposit

Packaging Details : The outer packing is first packed with foam plastic, and then reinforced with strong wooden cases

Product name : Universal tensile testing machine

Piston stroke : 200mm

Test control method : Micro servo

Tensile test space : 700mm

Control cabinet weight : 150KG

Clamping method : Hydraulic

Compression test space : 600mm

Total power : Total power:

Contact Now

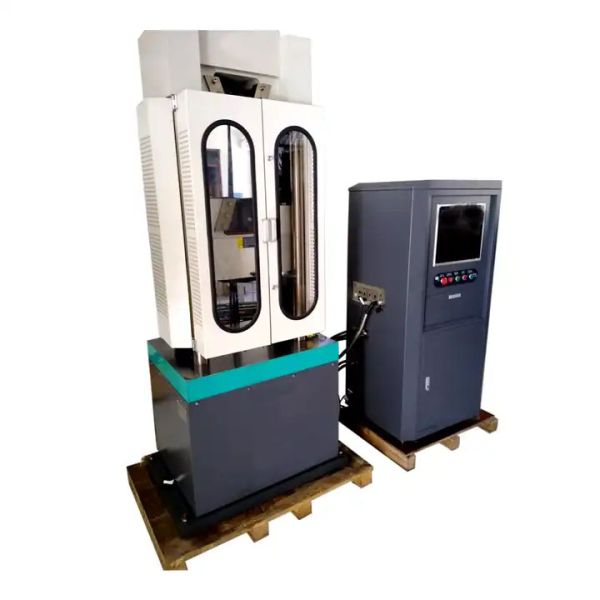

Fully Automatic, Highly Accurate Universal Tensile Testing Machine

product presentation:

This series of testing machines is clamped in the form of hydraulic jaws,controlled by a hand-controlled valve to control the testing machine,and a testing machine that displays the test curve by a microcomputer screen display.lt is mainly used to stretch,compress and bend metal and non-metal materials.Tests such as cutting,shearing,etc.,computter screen display load curve,force value,loading speed,displacement,etc.,aytomatically record data,print data results.The host uses four-column double-screw test space architevture and high-strength,high-toughness,and beautiful protection nets for securityprotection.It is a necessary equipment for research institutes,matallurgy and machinery factories,quality in spection stations,and universities and colleges.

Technical Parameters
Maximum test force(kN)	300	600	1000
Accuracy level	1
Collection method	Spoke load sensor
Piston stroke(mm)	200
Clamping method	Hydraulic
Test control method	Microcomputer servo control
Compression test space(mm)	600
Tensile test space(mm)	700
Total power(kW)	1.5
Compression platen(mm)	Φ148	Φ198	Φ225
Round sample clamping range(mm)	Φ10-30	Φ13-40	Φ13-40
Flat sample clamping range(mm)	0-10	0-15	0-20
Bending fulcrum span(mm)	50-300
Bending heart / stick diameter(mm)	50/50
Number of columns (screws)	6 column
Mainframe dimensions(mm)	8105601910	8805702050	9406402250
Host weight(kg)	≈1620	≈2000	≈2600
Control cabinet size(mm)	1010640840
Control cabinet weight(kg)	150

Highly Accurate Universal Tensile Testing Machine Fully Automatic

FAQ:

Q:What equipments do you supply?

A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other lab equipments.

Q: Are your company a trading one or a factory?

A: Factory+ trade (integration), More than 10 years focusing on test instruments field.

Q: After an order is placed, when to deliver?

A: Generally about 10-25days, If we have inventory, we can arrange shipment within 7 days Please be aware that our production lead times

depend on specific items and item quantities.

Q: What about the warranty with after-sales services?

A: The testing machine is guaranteed for 12 months , we can help you to repair your problem con troller freely, even it's not from our factory. After

the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while

using our product, handles guest problems and complaints in a professional and timely.

Q: What about the product' services and qualit?

A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our

product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s

company when you need. products are widely recognized and trusted by users.
